API

Introduction

Description

PAYSTO API is a software complex for managing multichannel trading infrastructure.

PAYSTO API is fully compatible with Authorize.net Secure Hosted Payment Form API, which allows you to set up integration of any web resource without significant costs and in a short time.

Purpose

PAYSTO API allows you to automate payment acceptance and online order processing in Russia.

Terms and Concepts

Term	Description
Recipient	The client for whose benefit funds are credited
Payer	The person making the payment
Shop	The Recipient's information system. For example, the Payer's cart on the Recipient's website and the Recipient's billing system.

Simplified Payment Scheme

Solid lines – mandatory Dotted lines – optional.

Steps for Successful Payment

1. Payment request;
2. Verification of goods in the PAYSTO catalog;
3. Payer redirection for payment;
4. Payment status;
5. Fiscal receipt generation;
6. Payment status;
7. Buyer return to Provider's website;
8. Payment status request;
9. Payment status.

Data Types

Name	Description	Value Range
Integer	Integer	From 0 to 2147483647
Long Integer	Long Integer	From 0 to 4294967296
Monetary	Real, integer and fractional part separator is "." (dot), no digit separator, fractional part with accuracy to two decimal places. The presence of a dot and two digits after it is mandatory. For example, 10 must be written as 10.00, 10.123 must be written as 11.12 or 11.13	from 0.01 to 1000000.00
String	String. Cannot contain the symbol "=" (equals) and the symbol "&" (ampersand).	The length is defined separately for each parameter.
Datetime	Coordinated Universal Time (UTC). Presented in yyyymmddhhnn format where y – digits for the year, m – month, d – day of month, h – hour (hh – number from 0 to 23) n – minutes. For example, January 15, 2010 17:04 201001151704	From 201001010000 to 205012312359
MD5	A string representing a 32-bit number in hexadecimal form and in lowercase (total 32 characters 0-9, A-F).

Security

Requests

The IP of the request source is checked. Signature (mandatory).

PAYSTO Responses

Check the SSL certificate of the responding server.

Responding Server Addresses

The IP address of the responding server is specified in PAYSTO LC > Parameters

Payment Requests

Request for Invoice Payment

This step initiates the procedure for paying an invoice issued in the Shop.

Address Element	Value
Protocol	https
Method	Post
Path	Information is provided in PAYSTO LC > Parameters
Encoding	UTF8

Parameters

Name	Description	Type	Mandatory
x_description	Payment comment	String	Yes
x_login	Shop code	Integer	Yes
x_amount	Amount to be paid	Monetary	Yes
x_currency_code	Currency of the amount to be paid. Can take values USD or RUB	String	Yes
x_cart_currency	Currency of the shop's cart. Values: USD, EUR or other short currency name. Passed when the cart currency is different from rubles (RUB) for display on payment pages (the amount and currency of debit are taken from x_amount and x_currency_code values).	String	No
x_line_item	Cart content for payment. A detailed description of the field value is provided in the table below.	String	Yes
x_email	Buyer's email address	String	No
x_fp_sequence	Transaction number assigned by the shop. This can be an invoice number or any other random number.	Numeric	Yes
x_fp_timestamp	UTC time in seconds, starting from January 1, 1970	Numeric	Yes
x_fp_hash	Signature generated using the HMAC-MD5 hashing algorithm with fields x*login, x_fp_sequence, x_fp_timestamp, x_amount and x_currency_code separated by ^ Signature Examples		Yes
x_invoice_num	Invoice number in the shop	Numeric	Yes
x_first_name	Buyer's first name	String	No
x_last_name	Buyer's last name	String	No
x_address	Buyer's address	String	No
x_city	Buyer's city	String	No
x_state	Buyer's region/state	String	No
x_country	Buyer's country	String	No
x_ship_to_first_name	Shipping contact's first name	String	No
x_ship_to_last_name	Shipping contact's last name	String	No
x_phone	Contact phone	String	No
x_fax	Contact fax	String	No
x_cust_id	Buyer's ID in the shop	String	No
x_ship_to_address	Shipping address	String	No
x_ship_to_state	Shipping region/state	String	No
x_ship_to_zip	Shipping address zip code	String	No
x_ship_to_country	Shipping country	String	No
x_relay_response	The string must have the value "TRUE"	String	Yes
x_relay_url	Payment notification URL	String	Yes

// Example string: "11111^789^67897654^10.50^USD"
// Example of signature generation:
Fingerprint = HMAC-MD5 ("11111^789^67897654^10.50^USD", "secret\*key")

The x_line_item field must contain one line from the user's shopping cart being paid for, consisting of several elements separated by the | delimiter. The number of fields passed must correspond to the number of items in the cart.

x_line_item field format

Name	Description	Mandatory
Item ID	Item identifier. String up to 31 characters long	Yes
item name	Item name. String up to 31 characters long	Yes
item description	Item description. String up to 255 characters long.	Yes
item quantity	Quantity. Must be a positive number.	Yes
item price (unit cost)	Cost per unit of goods. Real, integer and fractional part separator is "." (dot), no digit separator, fractional part with accuracy to two decimal places. The presence of a dot and two digits after it is mandatory. For example, 10 must be written as 10.00, 10.123 must be written as 11.12 or 11.13	Yes
item taxable	Is the item subject to VAT. Possible values: TRUE, FALSE, T, F, YES, NO, Y, N, 1, 0	No

Example of a cart being passed:

x_line_item=item1<|>golf balls<|><|>2<|>18.95<|>Y&
x_line_item=item2<|>golf bag<|>Wilson golf carry bag, red<|>1<|>39.99<|>Y&
x_line_item=item3<|>book<|>Golf for Dummies<|>1<|>21.99<|>Y&

Payment Details

This step notifies the Shop about the results of invoice payment.

For this request, the shop must check:

• The IP address from which the request originated;
• The invoice number;
• The payment amount;
• The signature.

Failure to perform these checks can seriously weaken protection against fraudsters.

Address Element	Value
Protocol	https
Method	Post
Path	Specified in x_relay_url when sending a payment request
Encoding	UTF8

Parameters

Name	Description	Type
x*response_code	Payment result 1 – paid 2 – declined 3 – error	Integer
x_trans_id	PAYSTO payment number	Long Integer
x_invoice_num	Payment number in the shop	Integer
x_MD5_Hash	Signature generated using the MD5 hashing algorithm with a secret key and fields x_login, x_trans_id, x_amount Example string "secret*key111119876543211.00"	MD5
x_amount	Payment amount	Monetary
x_cust_id	Value is equal to the corresponding parameter in the payment request	String
x_first_name	Value is equal to the corresponding parameter in the payment request	String
x_last_name	Value is equal to the corresponding parameter in the payment request	String
x_address	Value is equal to the corresponding parameter in the payment request	String
x_city	Value is equal to the corresponding parameter in the payment request	String
x_state	Value is equal to the corresponding parameter in the payment request	String
x_zip	Value is equal to the corresponding parameter in the payment request	String
x_country	Value is equal to the corresponding parameter in the payment request	String
x_phone	Value is equal to the corresponding parameter in the payment request	String
x_fax	Value is equal to the corresponding parameter in the payment request	String
x_cust_id	Value is equal to the corresponding parameter in the payment request	String
x_email	Value is equal to the corresponding parameter in the payment request	String
x_ship_to_first_name	Value is equal to the corresponding parameter in the payment request	String
x_ship_to_last_name	Value is equal to the corresponding parameter in the payment request	String
x_ship_to_address	Value is equal to the corresponding parameter in the payment request	String
x_ship_to_city	Value is equal to the corresponding parameter in the payment request	String
x_ship_to_state	Value is equal to the corresponding parameter in the payment request	String
x_ship_to_zip	Value is equal to the corresponding parameter in the payment request	String
x_ship_to_country	Value is equal to the corresponding parameter in the payment request	String

Interpretation of HTTP CODE 200 response	Interpretation of no response, other HTTP CODE, Timeout
It is considered that the shop service received the notification.	It is considered that the shop service is unavailable and cannot fulfill its obligations to the buyer. Funds received from the buyer will be blocked.

Returning the Buyer to the Shop

At this step, the Buyer returns to the Shop.

The data of this request passes through the Buyer's computer and can be forged by an unscrupulous Buyer. Therefore, it is not recommended to set the status for the issued invoice on Success url and Fail Url pages. Use Result Url for this purpose.

We recommend using the same page address for Success url and Fail Url, where based on the saved data when processing the Result url (or by re-querying the invoice status in PAYSTO), redirect the user to the final successful (unsuccessful) payment page.

It is important to understand that this step is performed from the Buyer's computer after some time has passed since the Buyer transitioned from the Shop to PAYSTO, so the Shop may need to authorize the Buyer to display private data.

Address Element	Value
Protocol	https
Method	Post
Path	Specified during shop registration
Encoding	UTF8

Parameters match those described in Payment Details

Payment Information

For these requests, it is recommended to check the SSL certificate of the responding server to prevent DNS spoofing.

Statement for a Period

Address Element	Value
Protocol	https
Method	Get
Path	https://paysto.com/api/Payment/GetList

Parameters

Name	Description	Type	Mandatory
FROM	start of the period (default – beginning of the current day).	Datetime	Yes
TO	end of the period (default – current moment).	Datetime	Yes
PAYSTO_SHOP_ID	Shop ID	Integer	Yes
PAYSTO_REQUEST_NO	Sequential (common for all request types) IS request counter, each subsequent value must be greater than the previous one.	Long Integer	No
PAYSTO_MD5	Signature of transmitted data. MD5 checksum.	MD5	Yes

Response Values

HTTP CODE	Comment
200	CSV file in the format Datetime,PAYSTO_PAYMENT_ID,PAYSTO_INVOICE_ID,PAYSTO_SUM,accountSum,status, statusNote If there were no payments for the specified period – an empty file

Column Description

Name	Description	Type
Datetime	Date and time of application registration.	Datetime
PAYSTO_PAYMENT_ID	PAYSTO transaction number	Long Integer
PAYSTO_INVOICE_ID	Transmitted invoice number in the shop.	String up to 50 characters
PAYSTO_SUM	Application amount (the amount that was actually intended to be paid/already paid)	Monetary
accountSum	Movement on Client Account. Positive – balance increase, negative – balance decrease.	Monetary
status	Application status code.	Application Status
statusNote	Comment on status. For example, if the status is RES_ERROR – then the error description.	String

Response Values

HTTP CODE	Comment
403	Security conditions violated. Check transmitted parameters and settings.
404	Shop not found

Payment Details

Address Element	Value
Protocol	https
Method	Get
Path	https://paysto.com/api/Payment/GetByInvoiceId

Parameters

Name	Description	Type	Mandatory
PAYSTO_INVOICE_ID	Transmitted invoice number in the shop.	String up to 50 characters	Yes
PAYSTO_SHOP_ID	Shop ID	Integer	Yes
PAYSTO_REQUEST_NO	Sequential (common for all request types) IS request counter, each subsequent value must be greater than the previous one.	Long Integer	No
PAYSTO_MD5	Signature of transmitted data. MD5 checksum.	MD5	Yes

Response Values

HTTP CODE	Comment
200	CSV file in the format Datetime,PAYSTO_PAYMENT_ID,PAYSTO_INVOICE_ID,PAYSTO_SUM,accountSum,status, statusNote

Column Description

Name	Description	Type
Datetime	Date and time of application registration.	Datetime
PAYSTO_PAYMENT_ID	PAYSTO transaction number	Long Integer
PAYSTO_INVOICE_ID	Transmitted invoice number in the shop.	String up to 50 characters
PAYSTO_SUM	Application amount (the amount that was actually intended to be paid/already paid)	Monetary
accountSum	Movement on Client Account. Positive – balance increase, negative – balance decrease.	Monetary
status	Application status code.	Application Status
statusNote	Comment on status. For example, if the status is RES_ERROR – then the error description.	String

Response Values

HTTP CODE	Comment
403	Security conditions violated. Check transmitted parameters and settings.
404	No invoice with this number found for this shop

Account Status

For these requests, it is recommended to check the SSL certificate of the responding server to prevent DNS spoofing.

Balance Check

Address Element	Value
Protocol	https
Method	Get / Post (recommended)
Path	https://paysto.com/api/Common/Balance

Parameters

Name	Description	Type	Mandatory
PAYSTO_SHOP_ID	Shop ID, issued upon registration.	Integer	Yes
PAYSTO_REQUEST_NO	Sequential (common for all request types) request number, each subsequent value must be greater than the previous one.	Long Integer	No
PAYSTO_MD5	Signature of transmitted data. MD5 checksum.	MD5	Yes

Response	Description	Type
HTTP CODE 200	Scalar value. Available balance.	Monetary
HTTP CODE 403	Security conditions violated. Check transmitted parameters and settings.
HTTP CODE 404	Shop not found

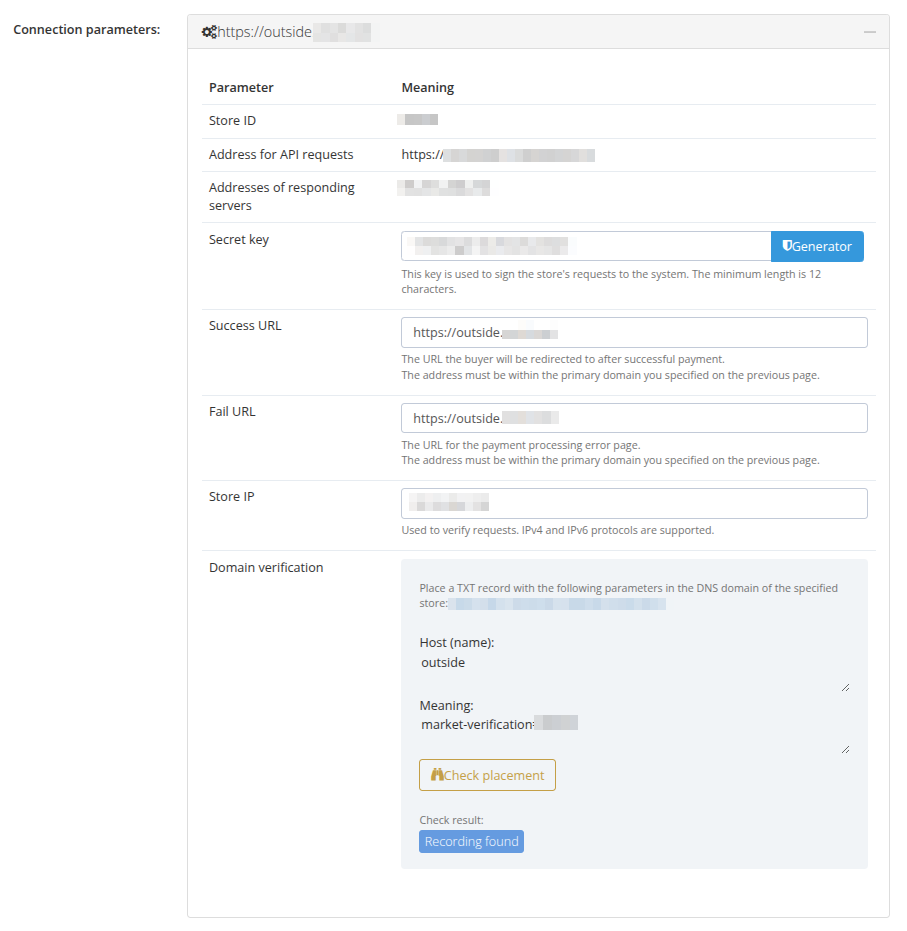

Appendix. Connection Parameters

Data obtained from the Personal Account interface (registration required):

1. Shop ID;
2. Address for API requests;
3. Responding server address;
4. Secret key (set by the user during connection);
